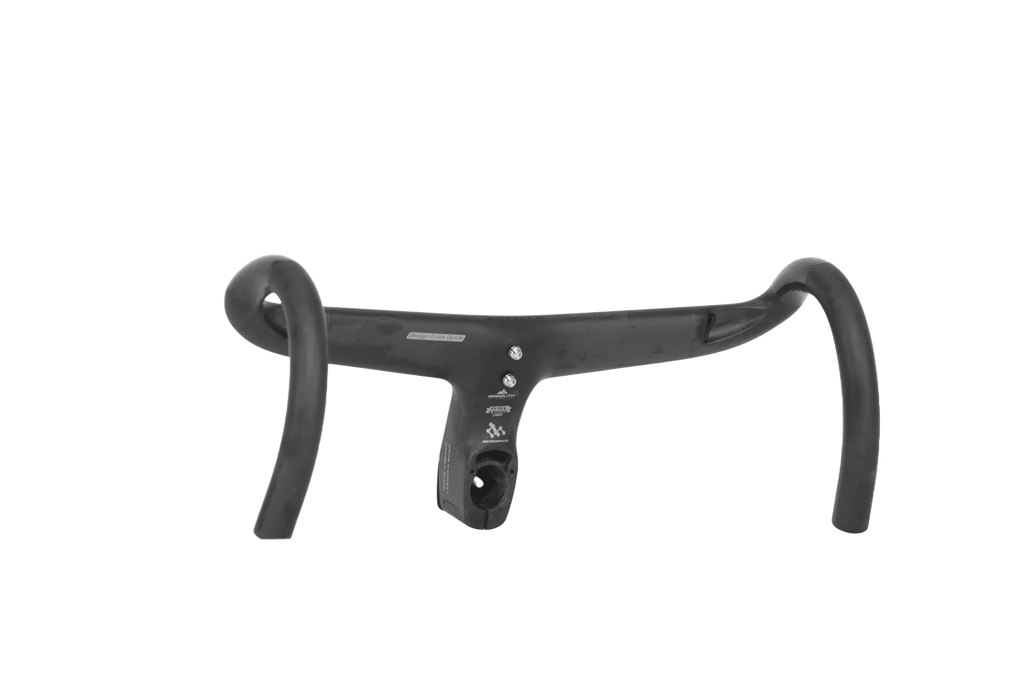

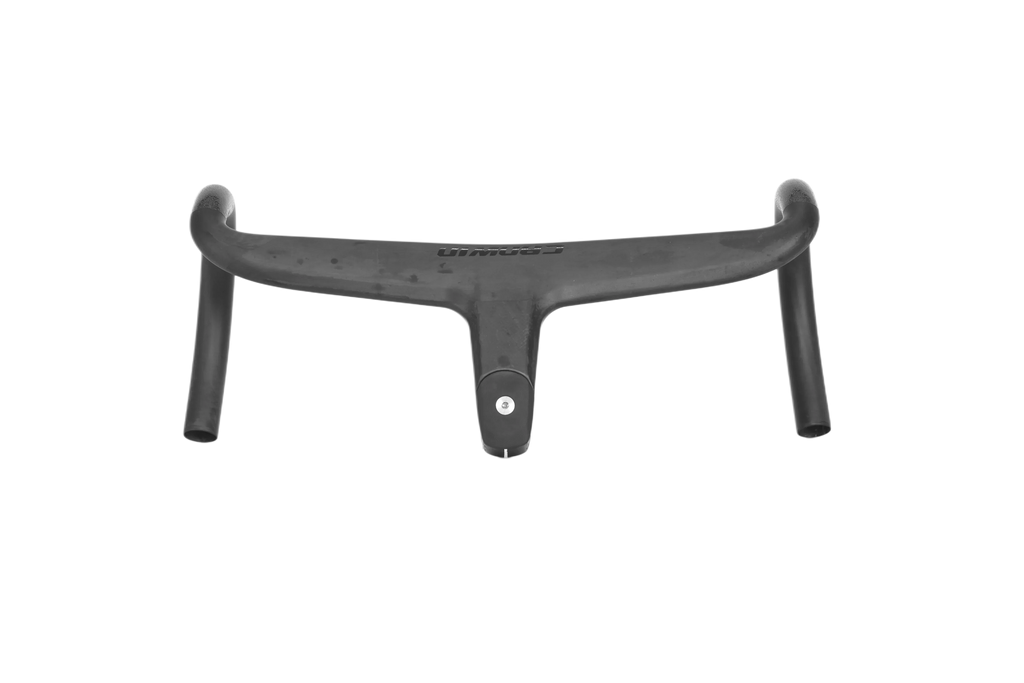

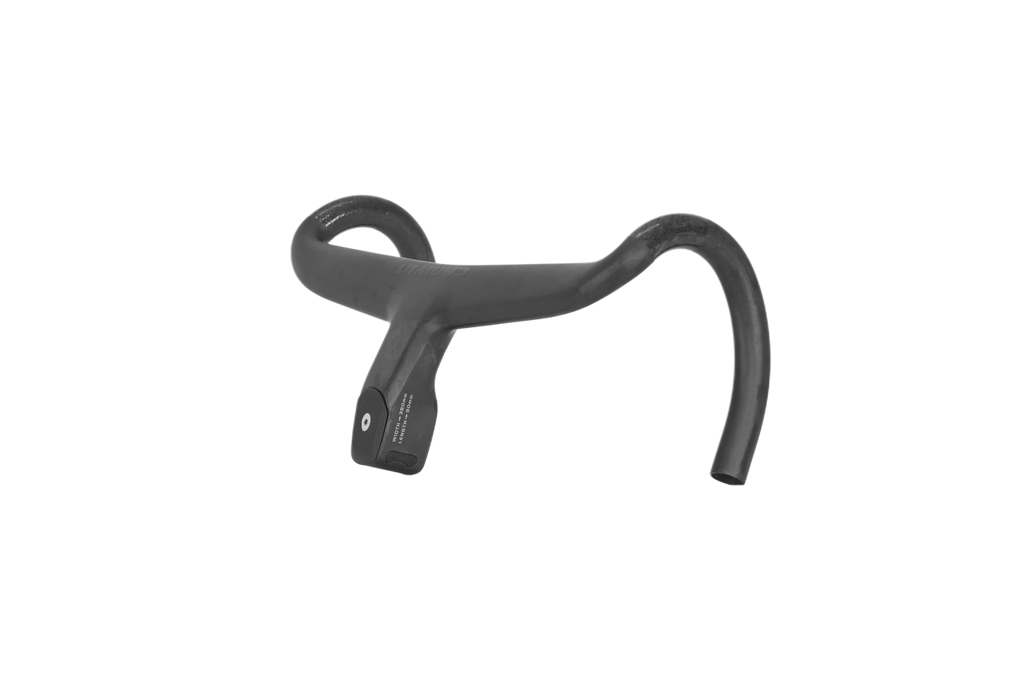

ZEPHYR SL Integrated Handlebar

380-80

€249,00

ZEPHYR SL Integrated Handlebar

380×90 size incl. paint & accessories: 339 g ±3%

SL / T1000 Carbon Fibre

28.6 mm steerer

€249,00

Taxes included.

We aim to ship your order the same day or the next business day.

Benelux: delivery within 1–2 days after dispatch
Rest of EU: delivery within 5–10 days after dispatch

Fast, reliable shipping — so you can get riding sooner.

You have the right to return your order within 14 days of delivery, in accordance with EU consumer protection laws.

To be eligible for a return, the item must be in its original condition and packaging. Returns are not accepted for items that have been installed, assembled, or modified.

Once your return is received and inspected, we will issue a refund to your original payment method.

5-year manufacturer warranty on all framesets

Specifications

Fully compatible with internal cable routing systems
Compatible with standard 28.6mm steerer tubes
Integrated computer mount (straight, ~1° angle)
Compatible with major bike computer brands including Garmin and Wahoo
One-piece monocoque molding for maximum rigidity
UCI legal
Designed and tested to complement the Quick Pro ER:ONE, UR:ONE, AR:ONE and BLADE frame geometry

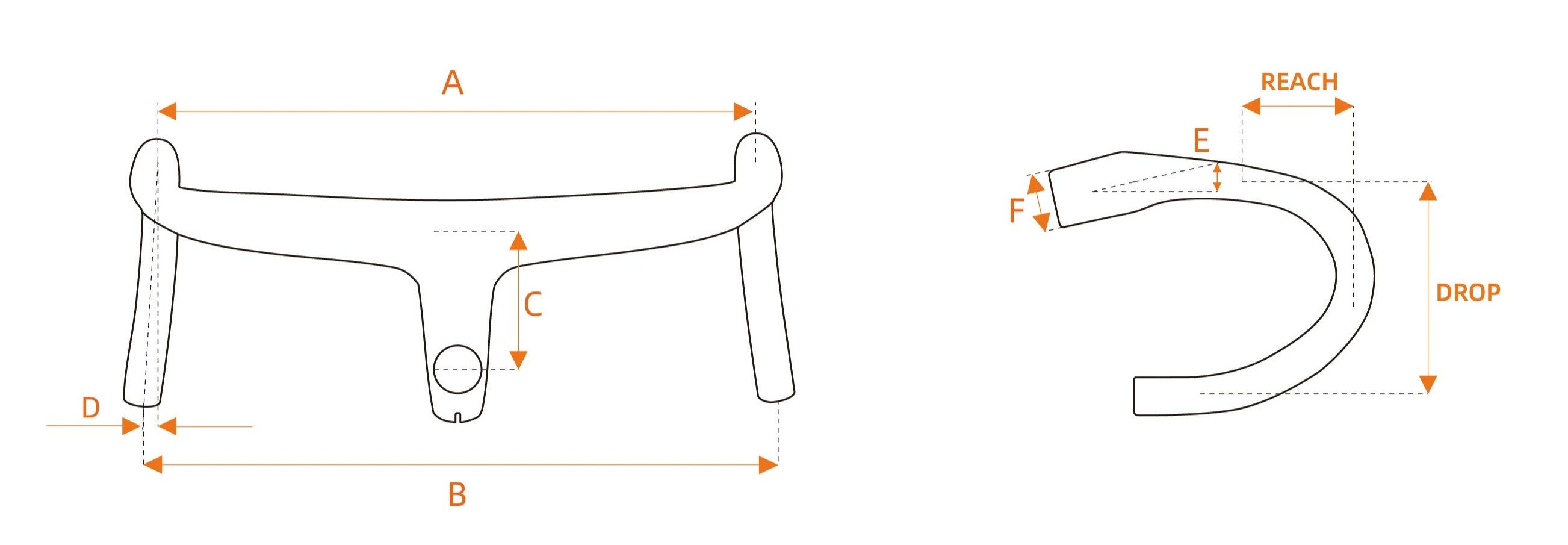

Sizing

Ref	Specification	340mm	360mm	380mm	400mm	420mm
A	Hood-to-hood (mm)	340	360	380	400	420
B	Drop-to-drop (mm)	366.5	386.5	406.5	426.5	446.5
C	Stem Length (mm)	70-110	80-140	80-140	80-140	90-140
D	Flare Angle (°)	6.1°	6.1°	6.1°	6.1°	6.1°
E	Stem Angle (°)	-8°	-8°	-8°	-8°	-8°
F	Stack (mm)	37	37	37	37	37
	Reach (mm)	75	75	75	75	75
	Drop (mm)	125	125	125	125	125

How to choose your size:
Bar width should match your shoulder (bi-acromial) width or go 1cm narrower for an aggressive, aero fit. Measure shoulder-bone to shoulder-bone. If your shoulders measure 39cm, a 380mm bar gives you a locked-in race position. Note: as a one-piece integrated handlebar, stem length cannot be adjusted after purchase — confirm your fit metrics before ordering.

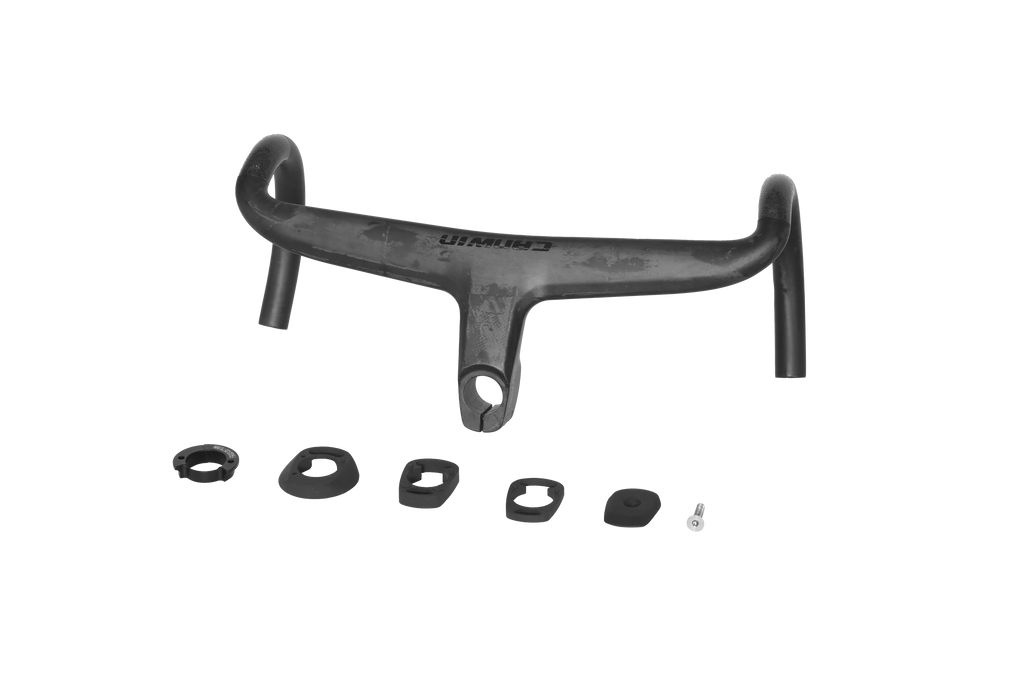

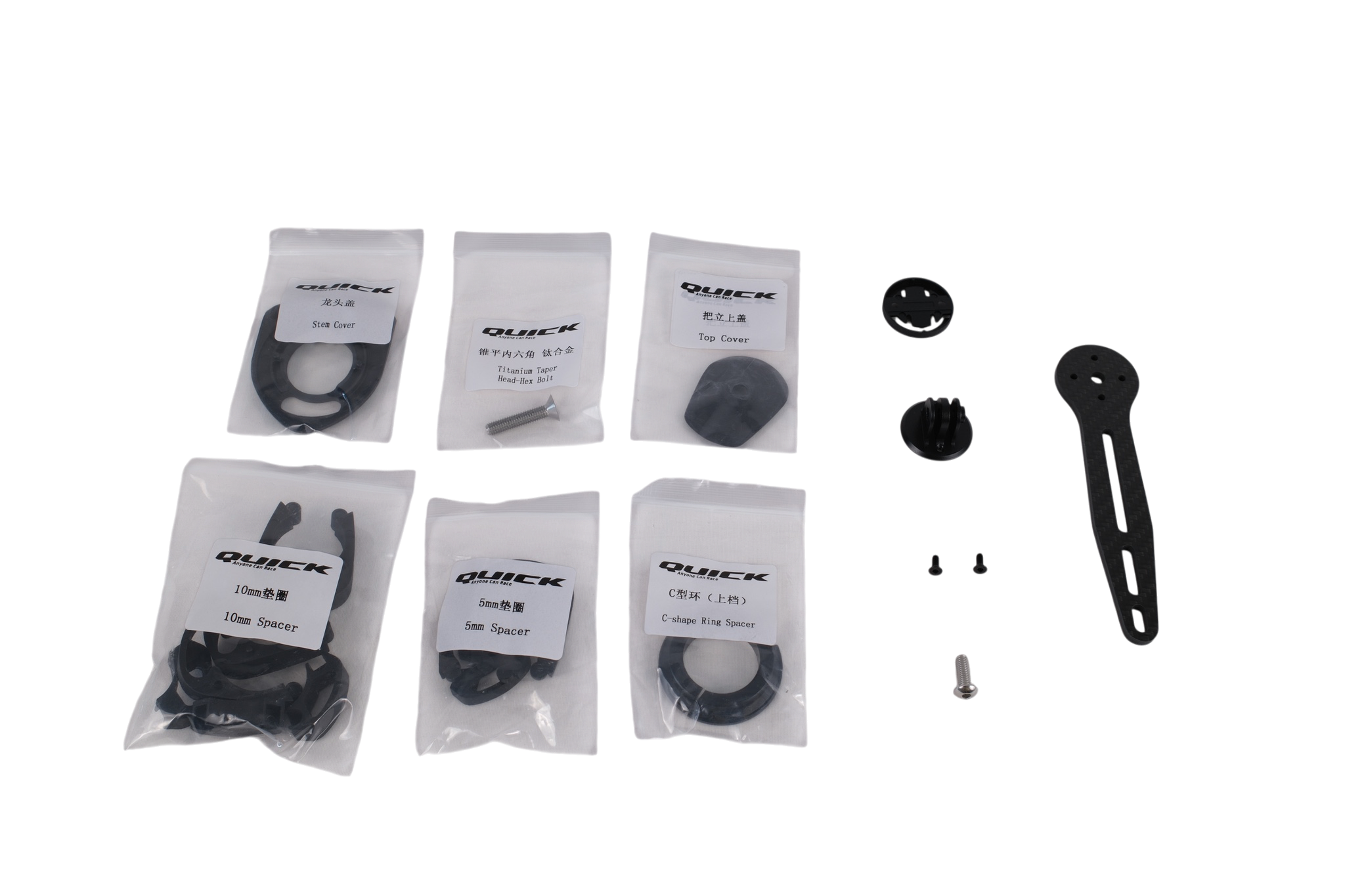

What's included

Frameset includes:

1× ZEPHYR SL Integrated Handlebar

Stem bolts

Bar end plugs

Computer mount

Installation guide

The ZEPHYR SL is Quick Pro's high-performance integrated handlebar — a one-piece cockpit engineered for serious road racing, and the more accessible sibling to the flagship ZEPHYR SSL. Built from T1000 carbon fiber with one-piece molding technology, it delivers the stiffness and reliability riders need in a lightweight package.

Weighing in at just 339g (380×90mm, including paint and accessories), the ZEPHYR SL combines a fully internal cable routing system with clean one-piece molding for an aerodynamic, drag-free profile. Whether you're building up a Quick Pro frame from scratch or upgrading an existing cockpit, the ZEPHYR SL is an excellent, race-ready finishing touch for your build.

Questions? We've Got You Covered!

Yes. The ZEPHYR SL is designed to pair with all Quick Pro frames using a 28.6mm steerer and internal cable routing, including the ER:ONE and AR:ONE. If you're unsure about compatibility with another brand's frame, contact us with your headtube spec and we'll confirm.

No — this is a one-piece integrated handlebar. The stem reach is fixed at the time of purchase. This is standard for all integrated cockpits. Make sure to confirm your bike fit before ordering.

At 339g ±3% for the 380×90mm size, including paint and accessories, the ZEPHYR SL delivers a competitive weight for a full one-piece integrated cockpit, without stepping up to SSL-level pricing.

Yes, the ZEPHYR SL meets UCI regulations and is suitable for use in sanctioned road racing events.

Many riders order frames with a different cockpit already owned, or prefer to spec their own fit. Offering the ZEPHYR SSL separately means you can add it at any time — whether completing a new build, replacing a damaged cockpit, or upgrading a previous bike.
